Vertical Lift Conveyors Systems

At CSL, we understand the evolving demands of modern industries and the role vertical lift conveyor systems play in ensuring smooth, efficient operations. Our expertly made vertical machinery is thoughtfully designed, offering space-saving solutions with a minimal footprint – a valuable attribute in today’s space-conscious industries.

A vertical elevator guarantees the safe transit of goods between varied heights or multiple floors. Our systems adeptly manage a diverse range of products with their versatile design, from boxes, crates, and totes to sacks, pallets, and more.

Another key benefit of a vertical elevator is the impressive throughput puts that can be achieved. They handle up to 2,000 products per hour, up to 25m in height, whether it’s a light 75kg product or a 2-ton pallet.



    Types of vertical lift conveyor solutions:

    1. Qimarox® platform elevators

    The Qimarox Prorunner Mk1 is a high-quality quality robust vertical elevator that remains versatile while keeping a minimal footprint. The Prorunner Mk1 comes in multiple configurations to suit the application and products. The lift uses a high-quality, low-maintenance belt, which does not require lubricating or tightening, unlike chain lifts. In and out feeds can be either from right angles or from the front. The lift platform is fitted with high-quality motorised rollers or an optional grip top belt.

    Specification
    • Up to 420 products per hour
    • Available up to 11.4m high
    • Max product size: 1200x600mm
    • FootPrint: 0.7m²
    • Suitable for boxes, crates, totes, sacks etc
    • Max product weight: 75kg
    • Low noise

    2. Qimarox® continuous elevators

    The Qimarox Prorunner Mk5 is a high throughput vertical lift with ultra-smooth continuous movements and transfers. The Prorunner Mk5 comes in multiple configurations to suit the application and products. The lift uses a high-quality, low-maintenance chain. In and out feeds can be either from right angles or from the front. The lift can be used as a vertical sortation/buffer system.

    Specification
    • Up to 2000 products per hour
    • Available up to 25m high
    • Max product size: 1000x650mm
    • FootPrint: 1.1m²
    • Suitable for boxes, crates, totes, sacks etc
    • Max product weight: 50kg

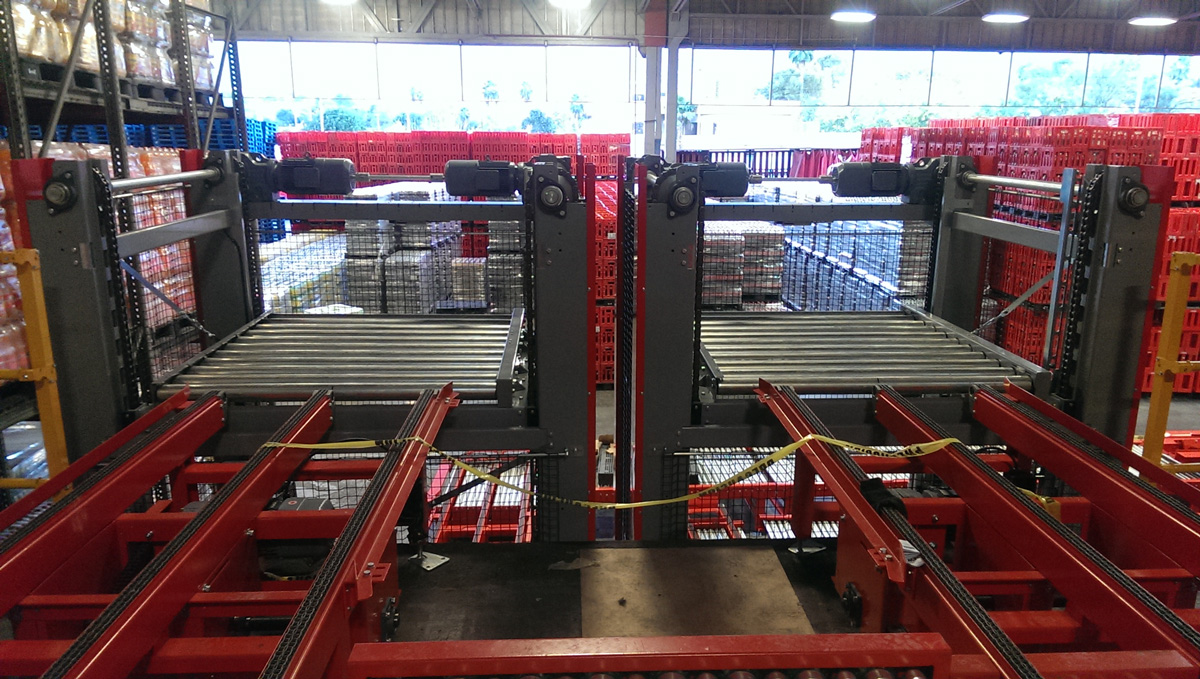

    3. Qimarox® pallet elevators

    The Qimarox Prorunner Mk9 is a high quality robust vertical pallet conveyor which can be fitted with either roller or chain lifting platforms. The Prorunner Mk9 comes in multiple configuration options to suit the application and products. In and out feeds can be either from right angles or from the front. The lift can be used as a vertical sortation/buffer system

    Specification
    • Up to 60 pallets per hour
    • Available up to 10m high
    • Max product size: 1200x1200mm
    • FootPrint: 3m²
    • Suitable for pallets, pallet boxes, cases, IBC etc
    • Max pallet weight: 1000kg
    • Low noise

    4. Qimarox® pallet elevator (MK10)

    The Qimarox Prorunner Mk10 is a high-quality, robust vertical 4-post pallet conveyor that can be fitted with either roller or chain lifting platforms. The Prorunner Mk10 has multiple configuration options to suit the application and products. Out feeds can be either from right angles or from the front/back. The lift can be used as a vertical sortation/buffer system.

    Specification
    • Up to 60 pallets per hour
    • Available up to 10m high
    • Max product size: 1200x1200mm
    • FootPrint: 3m²
    • Suitable for pallets, pallet boxes, cases, IBC etc
    • Max pallet weight: 2000kg
    • Low noise
    Vertical Elevators

    Key benefits of using Qimarox® vertical lift systems:

    In the realm of conveyor and automation solutions, Qimarox® stands out as a brand aligned with precision, durability, and adaptability. Here are their unparalleled benefits:

    • Low maintenance requirements: Designed with the user in mind, these systems promise prolonged functionality with minimal upkeep.
    • High-quality, robust build: Ensuring longevity, each unit showcases a sturdy construction, reflecting our commitment to quality and reliability.
    • Multiple configuration options: Catering to diverse needs, we offer configurations tailored to various applications, emphasising flexibility in design.
    • Right-angle or front-feed options: You can choose right-angle or front-feed mechanisms to suit distinct spatial and operational requirements.
    • Use as vertical sortation or buffer systems: Beyond just lifting, these systems can be integrated for vertical sortation or as reliable buffer solutions, enhancing warehouse efficiency.

    With CSL and Qimarox®, elevate your warehouse operations to unmatched heights.

    FAQs:

    K
    L
    What are vertical lift conveyors?

    Vertical lift conveyors are systems designed to move products vertically between different heights or floors, saving space and improving efficiency.

    K
    L
    How is a continuous vertical lift conveyor different from standard vertical lifts?

    Continuous vertical lifts, like the Prorunner Mk5, offer ultra-smooth continuous movements and transfers, providing higher throughput rates and efficient sorting capabilities.

    K
    L
    Can I customise my vertical conveyor elevator based on my application needs?

    Yes, the Qimarox® vertical lift systems have multiple configurations to suit varying application and product requirements.

    K
    L
    How do I decide between a belt or chain lift system?

    The choice depends on your product type, weight, and throughput needs. Like in Prorunner Mk1, belts require less maintenance as they don't need lubrication or tightening, while chains, used in Prorunner Mk5, can handle higher weights and throughput.

    K
    L
    What products can be transported using the vertical lift conveyor systems?

    Our systems can transport various products, including boxes, crates, totes, sacks, pallets, pallet boxes, cases, and IBCs.

    K
    L
    How high can the vertical lift systems elevate products?

    Depending on the model, our systems can elevate products up to a height of 25m.
