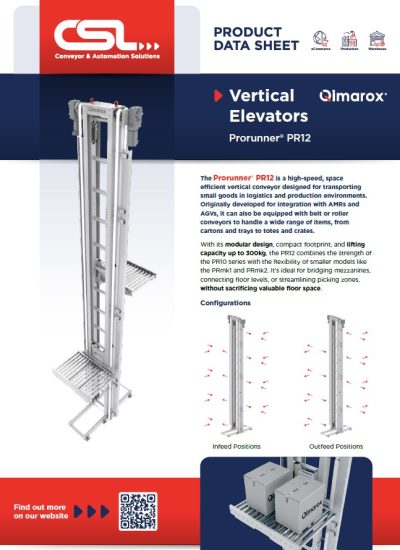

Vertical Elevators
Vertical Lift Conveyor Solutions from CSL
In modern warehouse and production environments, the ability to move goods between different floor levels efficiently is essential. A vertical lift conveyor offers a fast, compact and reliable method of vertical transport, especially in facilities where space is limited or continuous incline conveyors are impractical.
CSL designs and installs conveyor vertical lift systems tailored to your product type, throughput requirements, and site layout. These solutions form part of our wider Multifloor automation strategy, providing seamless integration between floors in fulfilment centres, factories and distribution hubs.
Each vertical lift conveyor system can be customised to handle varying product weights and sizes – from boxes and cartons to crates and sacks – ensuring maximum efficiency with minimal operator intervention.
Benefits of Vertical Elevators
Whether you’re installing a new system or upgrading an existing line, a vertical lift system provides a number of operational benefits:
- Higher throughput: Move more products per hour with minimal dwell time
- Reduced manual handling: Eliminate the need for staff to transport goods between floors
- Lower MHE costs: Reduce reliance on forklifts and pallet stackers
- Compact footprint: Smaller than incline/decline belts, ideal for tight layouts
- Improved safety: Fewer floor-level movements means reduced risk of injury or product damage
- Quiet operation: Especially when using belt-based systems like the Prorunner MK1
- Flexible configurations: Handle multiple SKUs and product types on the same line
These features make vertical conveyor systems ideal for multi-level logistics operations, e-commerce fulfilment, automated packing lines, and manufacturing facilities.

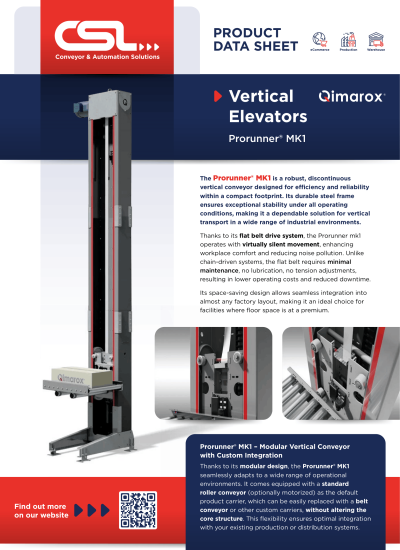

Qimarox® Prorunner (MK1)
The Prorunner mk1 is a discontinuous vertical conveyor with a small footprint that excels in robustness and requires minimal maintenance. Its steel structure is extremely stable under all circumstances.
By using a flat belt the Prorunner mk1 is completely silent in its movement. Moreover, a flat belt of this type almost has no maintenance. No lubrication and tension in comparison to chain driven system is needed anymore. Due to the small footprint the machine can be used in almost any factory lay-out.
Specification
- Up to 360 products per hour
- Available up to 14.45m high
- Max product size: 910 x 610mm
- Suitable for Boxes, crates and sacks
- Max product weight: 100kg
- Low operational noise
- Multiple products per conveyor

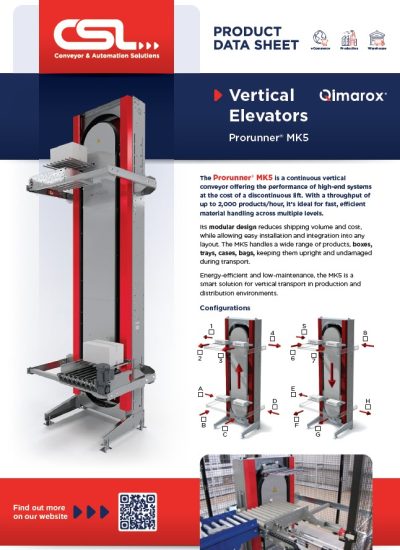

Qimarox® continuous elevators (MK5)
The Qimarox Prorunner Mk5 is a high-throughput vertical lift conveyor with ultra-smooth continuous movements and transfers. It comes in multiple configurations to match the application and your products. This elevator conveyor system can be used as a vertical sortation/buffer system.
Specification
- Up to 2,000 products per hour
- Available up to 20m high
- Max product size: 225mm x 50mm
- Suitable for boxes, crates, totes, sacks etc.
- Max product weight: 50kg

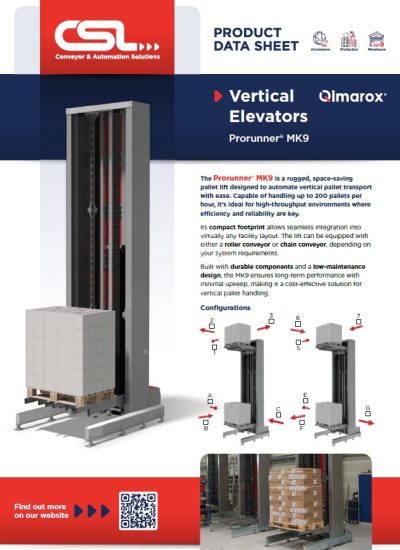

Qimarox® pallet elevators (MK9)
The Qimarox Prorunner Mk9 is a sturdy and hard-wearing vertical pallet conveyor that can be fitted with either roller or chain platforms. This vertical conveyor can be customised in various configurations to fit the applications of your business and products. The Prorunner Mk9 can also be used as a vertical sortation/buffer system.
Specification
- Up to 100 pallets per hour
- Available up to 11m high
- Max product size: 1300 x 1250mm
- Suitable for pallets, pallet boxes, cases, IBC etc.
- Max pallet weight: 1,000kg

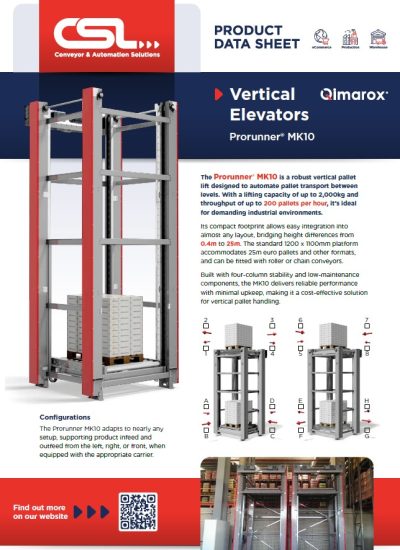

Qimarox® pallet elevator (MK10)
The Qimarox Prorunner Mk10 is a dependable vertical 4-post pallet conveyor that can be fitted with either roller or chain lifting platforms. As the Prorunner Mk10 can be arranged into multiple configurations, you can have peace of mind that we can tailor this vertical conveyor system to your business’s needs. You can also use this vertical lift conveyor as a vertical sortation/buffer system.
Specification
- Up to 100 pallets per hour
- Available up to 25m high
- Max product size: 1650 x 1400mm
- Suitable for pallets, pallet boxes, cases, IBC etc.
- Max pallet weight: 2,000kg
- Low noise
With over 28 years experience, we pride ourselves on delivering successful installations for leading organisations. Our commitment to excellence fosters strong relationships, allowing us to provide tailored automation solutions and ongoing support.
For more information, contact us at 01283 55 22 55.
Our Clients
Frequently Asked Questions
What are vertical lift conveyors?
A vertical lift conveyor is a mechanical system designed to move goods between floors in a warehouse or facility. It offers a more compact, efficient alternative to incline belts or manual transport methods.
How is a continuous vertical lift conveyor different from standard vertical lifts?
Continuous vertical lifts, like the Prorunner Mk5, offer ultra-smooth continuous movements and transfers, providing higher throughput rates and efficient sorting capabilities.
Can I customise my vertical conveyor elevator based on my application needs?
Yes, the Qimarox® vertical lift systems have multiple configurations to suit varying application and product requirements.
How do I decide between a belt or chain lift system?
The choice depends on your product type, weight, and throughput needs. Like in Prorunner Mk1, belts require less maintenance as they don’t need lubrication or tightening, while chains, used in Prorunner Mk5, can handle higher weights and throughput.
What products can be transported using the vertical lift conveyor systems?
Our systems can transport various products, including boxes, crates, totes, sacks, pallets, pallet boxes, cases, and IBCs.
How high can a vertical lift conveyor elevate products?
Depending on the model, our systems can elevate products up to a height of 25m.
More Information
Vertical Elevator Conveyors Systems
At CSL Automation, we understand the evolving demands of modern industries and the role vertical lift conveyor systems play in ensuring smooth, efficient operations. Our expertly made vertical machinery is thoughtfully designed, offering space-saving solutions with a minimal footprint – a valuable attribute in today’s space-conscious industries.
A vertical elevator guarantees the safe transit of goods between varied heights or multiple floors. Our systems adeptly manage a diverse range of products with their versatile design, from boxes, crates, and totes to sacks, pallets, and more.
You don’t have to compromise on throughput either! Our vertical conveyor systems are capable of handling up to 2,000 products per hour at a maximum of 25m in height, whether it’s a light 75kg product or a 2-ton pallet.
Types of vertical lift conveyor solutions:
Qimarox® platform elevators (MK1)
- The Qimarox Prorunner Mk1 is a high-quality, robust vertical elevator that remains versatile while keeping a minimal footprint. The Prorunner Mk1 comes in multiple configurations to suit the application and products. The lift uses a durable, low-maintenance belt, which does not require lubricating or tightening, unlike chain lifts. In and out feeds can be either from right angles or from the front, allowing for additional flexibility. Choose from motorised rollers or an optional grip top belt to get the most out of your vertical conveyor system.
Specification
- Up to 420 products per hour
- Available up to 11.4m high
- Max product size: 1200x600mm
- FootPrint: 0.7m²
- Suitable for boxes, crates, totes, sacks etc
- Max product weight: 75kg
- Low noise
Qimarox® continuous elevators (MK5)
- The Qimarox Prorunner Mk5 is a high throughput vertical lift conveyor with ultra-smooth continuous movements and transfers. The Prorunner Mk5 comes in multiple configurations to match the application and products of your business. With a high-quality and low maintenance chain, you don’t need to worry about constant maintenance. This lift conveyor also allows for in and out feeds to be installed from either right angles or from the front. This particular elevator conveyor system can be used as a vertical sortation/buffer system.
Specification
- Up to 2000 products per hour
- Available up to 25m high
- Max product size: 1000x650mm
- FootPrint: 1.1m²
- Suitable for boxes, crates, totes, sacks etc
- Max product weight: 50kg
Qimarox® pallet elevators (MK9)
- The Qimarox Prorunner Mk9 is a sturdy and hard-wearing vertical pallet conveyor which can be fitted with either roller or chain lifting platforms. This vertical conveyor can be customised in various configurations to fit the applications of your business and its products. With in and out feeds that can be installed from either right angles or from the front, this versatile lift conveyor can increase the efficiency of your business operations. The Prorunner Mk9 can also be used as a vertical sortation/buffer system.
Specification
- Up to 60 pallets per hour
- Available up to 10m high
- Max product size: 1200x1200mm
- FootPrint: 3m²
- Suitable for pallets, pallet boxes, cases, IBC etc
- Max pallet weight: 1000kg
- Low noise
Qimarox® pallet elevator (MK10)
- The Qimarox Prorunner Mk10 is a dependable vertical 4-post pallet conveyor that can be fitted with either roller or chain lifting platforms. As the Prorunner Mk10 can be arranged into multiple configurations, you can have peace of mind that we can tailor this vertical conveyor system to your businesses needs. Out feeds can be either from right angles or from the front/back. You can also use this vertical lift conveyor as a vertical sortation/buffer system.
Specification
- Up to 60 pallets per hour
- Available up to 10m high
- Max product size: 1200x1200mm
- FootPrint: 3m²
- Suitable for pallets, pallet boxes, cases, IBC etc
- Max pallet weight: 2000kg
- Low noise
Key benefits of using Qimarox® vertical lift systems:
In the realm of conveyor and automation solutions, Qimarox® stands out as a brand aligned with precision, durability, and adaptability. Here are their unparalleled benefits:
- Low maintenance requirements: Designed with the user in mind, these systems promise prolonged functionality with minimal upkeep.
- High-quality, robust build: Ensuring longevity, each unit showcases a sturdy construction, reflecting our commitment to quality and reliability.
- Multiple configuration options: Catering to diverse needs, we offer configurations tailored to various applications, emphasising flexibility in design.
- Right-angle or front-feed options: You can choose right-angle or front-feed mechanisms to suit distinct spatial and operational requirements.
- Use as vertical sortation or buffer systems: Beyond just lifting, these systems can be integrated for vertical sortation or as reliable buffer solutions, enhancing warehouse efficiency.
